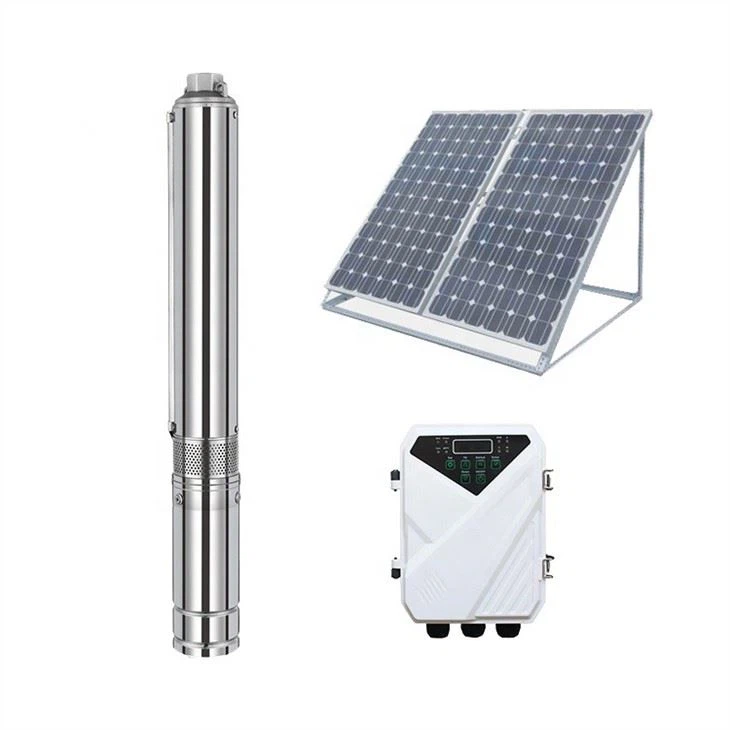

Key Features of the Macire Pump Kit:
- Deep-Well Capability: Extract water from depths up to 135 meters using the included 140m submersible cable, ensuring a steady supply even in challenging terrains.
- Impressive Flow Rate: Pump up to 6000 liters per hour, ideal for high-volume needs like farms, industries, and homes.
- Eco-Friendly Power: Operates with 8x340W solar panels (2720W total), reducing energy costs and minimizing environmental impact.
- MPPT Controller: Advanced energy conversion for optimal pump performance and efficiency.
- Durable Build: Stainless steel construction ensures longevity and resistance to corrosion.
- Smart Protections: Features water shortage protection, soft start technology, and safeguards against voltage fluctuations and overheating.
General Specifications:
- Model Number: 4DPC6-135-110-1500DC
- Pump Type: Deep Well Submersible
- Power Source: Solar
- Controller Type: MPPT
- Voltage: 110V
- Power: 1100W DC
- Motor Type: Permanent magnet DC brushless synchronous
- Suitable Solar Panels: 8 pcs x 340W (High-Efficiency Panels)
- Submersible Cable Length: 140m
Performance:
- Flow Rate: 6000L/Hr
- Maximum Head: 135m
- Maximum Lift Height: 143m
- Suction Depth: Up to 8m
Pump Construction:
- Material: Stainless Steel
- Outlet/Connector/Oil Cylinder: Brass
- Mechanical Seal: Alloy
- Protection: IP65
Controller Features:
- Waterproof Grade: IP65
- Soft Start Technology
- High/Low Voltage/Over-Current/High Temperature Protection
Solar Panel Specifications:
- Power: 340W
- Voltage: 48V
- Current: 7.08A
- Dimensions: 2005 x 1002 x 35 mm
- Weight: 24.5kg
