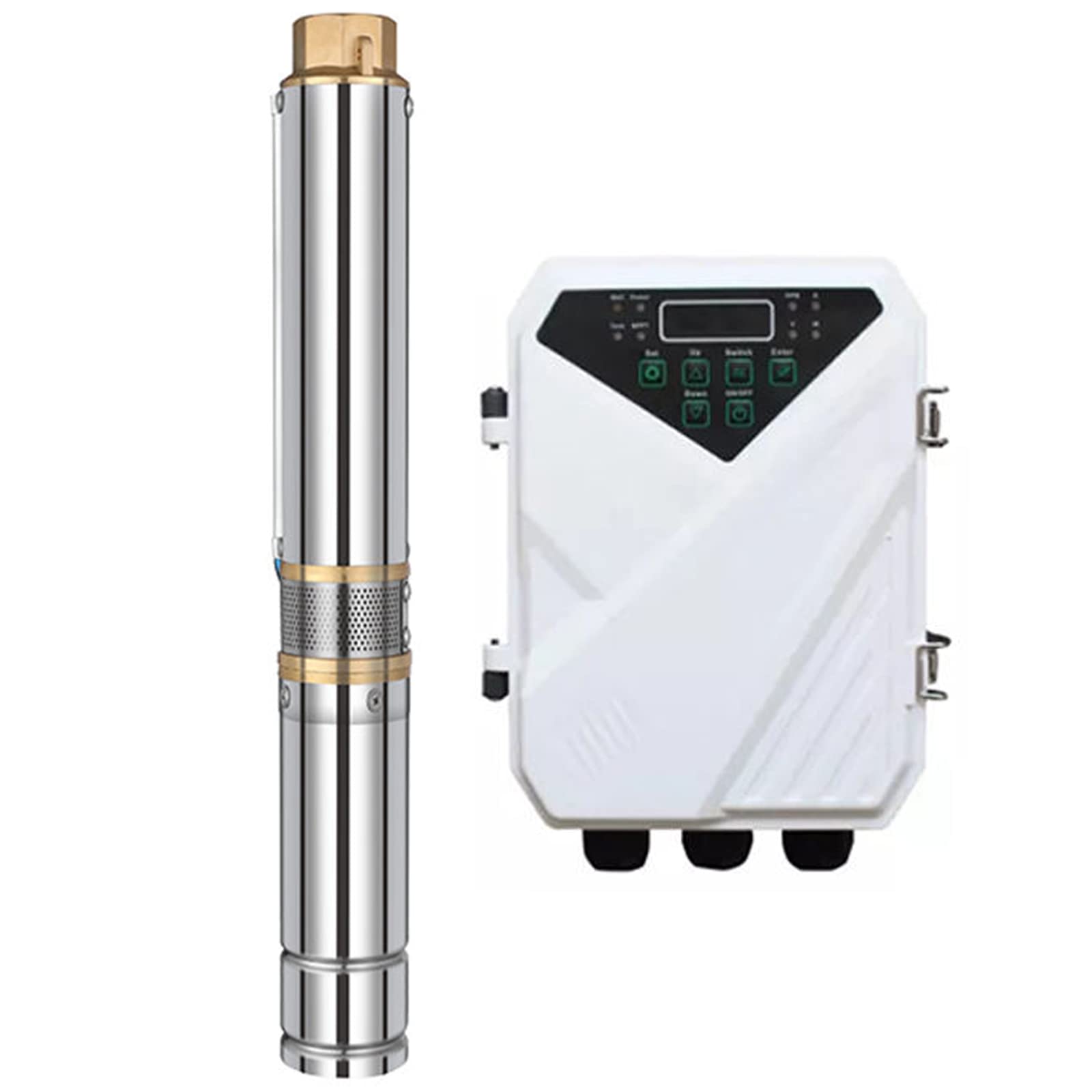

95m 2.2Kw Trunsun AC DC Borehole Pump – 19000L/H AC DC 300v 4DLR17-95-300-2200-A/D

60m 19000L/Hr 4″ Solar Water Pump (Pump Only) – Specifications:

General:

• Model Number: 4DSC19-60-300-2200-A/D
• Pump Type: Deep Well Submersible
• Power Source: AC/DC (300V)
• Power Consumption: 2200W
• Outlet Size: Submersible Borehole Deep Well
• Submersible Cable: Not included (customizable)

Performance:

• Flow Rate: 19000L/Hr
• Maximum Head: 60m
• Maximum Lift Height: 66m
• Suction Depth: Up to 8m

Construction:

• Material: Stainless Steel
• Motor Type: Permanent magnet DC brushless synchronous
• Impeller Material: Stainless Steel
• Protection: IP65

Controller:

• MPPT Controller: Optional (recommended for solar power)
• Protection: Water shortage protection, soft start, over-current/voltage/temperature protection

Additional Requirements (not included):

• Solar Panels (recommended)
• Submersible Cable (customizable length)
• Safety Cable
• Poly Pipe (large diameter recommended for this flow rate)
• Wire Power Cable (3 wires + earth, equal or larger size than pump cable)

Warranty:

• Pump: 2 Years
• Controller (if purchased): 1 Year

Note:

• This description is for the pump only. Additional equipment is required for complete installation and operation.
• Submersible cable length can be customized upon request.
