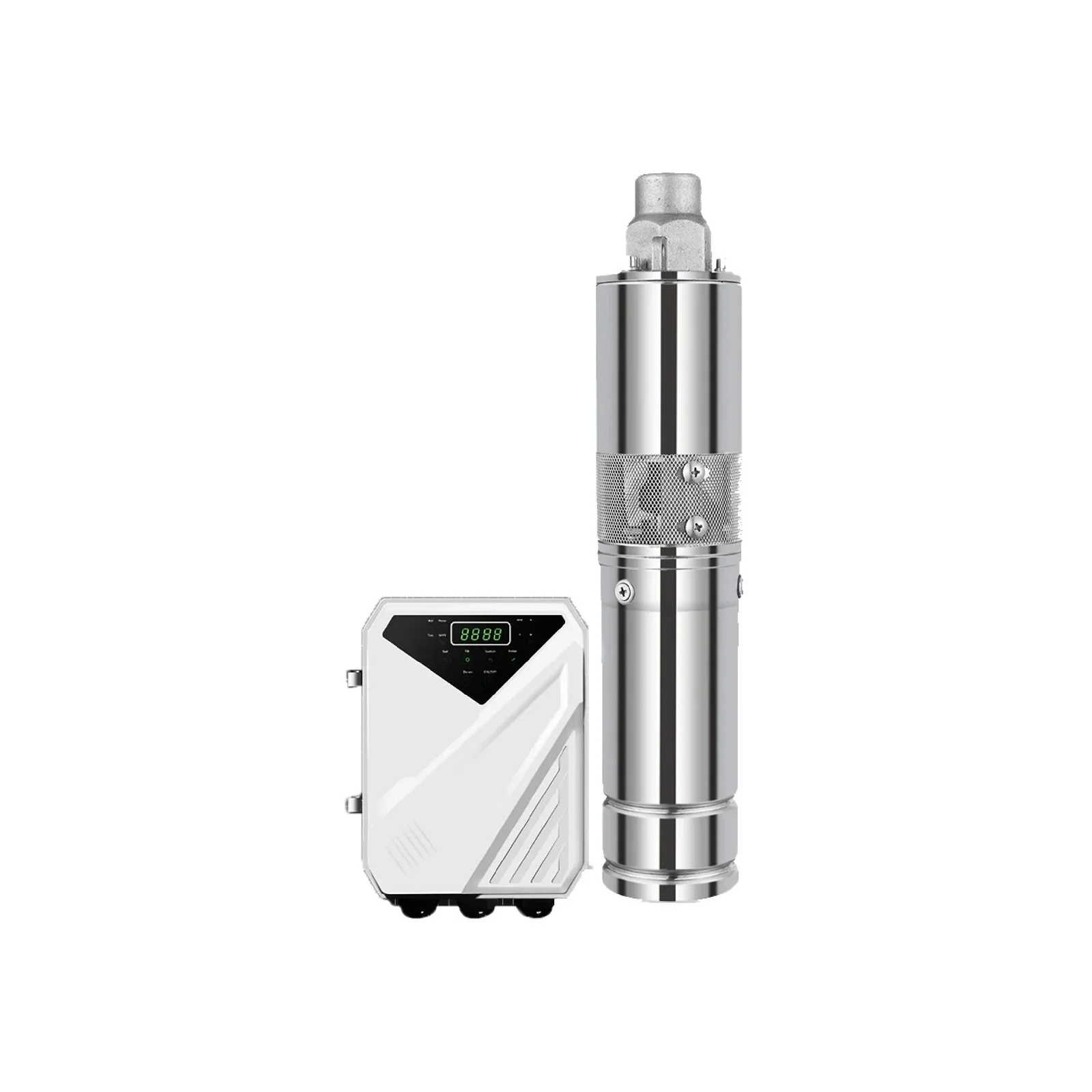

95m 3500L/Hr 3″ Solar Water Pump Kit with Panels + Cable 3DPC3.5-95-72-750 DC 72V 750W Submersible Borehole Deep Well pump with Mppt Controller Trunsun

95m 3500L/Hr 3″ Solar Water Pump Kit: Specifications

General Specifications:

• Model Number: 3DPC3.5-95-72-750
• Pump Type: Deep Well Submersible
• Power Source: Solar
• Controller Type: MPPT
• Suitable Solar Panel: 2pcs x 340W
• Submersible Cable: 100m

Performance:

• Flow Rate: 3500L/Hr
• Maximum Head: 95m
• Maximum Lift Height: 104m
• Suction Depth: Up to 8m

Motor:

• Type: Permanent magnet DC brushless synchronous
• Voltage: 72V
• Power: 750W
• Efficiency: ≥ 75%

Pump Construction:

• Material: Stainless Steel
• Outlet/Connector/Oil Cylinder: Brass
• Mechanical Seal: Alloy
• Protection: IP65

Controller Features:

• Waterproof Grade: IP65
• Soft Start Technology
• High/Low Voltage/Over-Current/High Temperature Protection

Package Includes:

• 1 x 3″ DC Stainless Steel Solar Pump with 2m cable
• 1 x Pump Controller with MPPT function
• 1 x Stainless Steel Float Switch
• 1 x Pump Outlet Joint Connector
• 1 x Splice Kit for Cable Join
• 1 x Splice Kit for Waterproof
• 2 x 340W Solar Panels
• 1 x 100m Submersible Cable

Warranty:

• Pump: 2 Years
• Controller: 1 Year
• Solar Panels: 5 Years

Note:

• Additional items are required for installation and operation, including safety cable, poly pipe, and wire power cable.
