Key Features:
- Wide PV Voltage Input Range: Accommodates a broad spectrum of photovoltaic inputs from 90VDC to 500VDC, ensuring compatibility with diverse solar panel configurations.
- Enhanced PV Input Current: Supports a maximum PV input current of up to 27A, optimizing solar energy harvest for increased efficiency.
- High Battery Charging Capacity: Delivers a substantial battery charging power of up to 120A, facilitating rapid and efficient battery replenishment.
- Pure Sine Wave Output: Provides clean and stable electricity, safeguarding sensitive electronics and ensuring optimal performance.
- Integrated MPPT Solar Charge Controller: Maximizes solar energy utilization by continuously tracking the maximum power point of your solar panels.
- Customizable Input Voltage Range: Via the intuitive LCD interface, adjust input voltage parameters to suit specific requirements of home appliances and personal computers.
- Adjustable Battery Charging Current: Tailor the charging current based on application needs through the user-friendly LCD settings.
- Selectable AC/Solar Charging Priority: Determine charging precedence between AC mains and solar input to align with your energy consumption strategy.
- Grid and Generator Compatibility: Seamlessly integrates with mains electricity or generator power, offering flexibility in various scenarios.
- Automatic Restart Function: Ensures the inverter resumes operation automatically upon AC power restoration, maintaining uninterrupted power supply.
- Comprehensive Protection Mechanisms: Equipped with safeguards against overloads, overheating, and short circuits, enhancing system reliability and longevity.
- Battery-Independent Operation: Capable of functioning without a connected battery, allowing for direct utilization of solar power during daylight hours.
- Lithium Battery Activation: Features a function to activate lithium batteries, ensuring compatibility and optimal performance with modern battery technologies.
- Cold Start Capability: Empowers the system to initiate operation in the absence of grid power, providing resilience during outages.
- Scalable Parallel Operation: Supports parallel connection of up to 12 units for the 6kVA model, enabling scalability to meet expanding energy demands (battery connection required).
Technical Specifications:

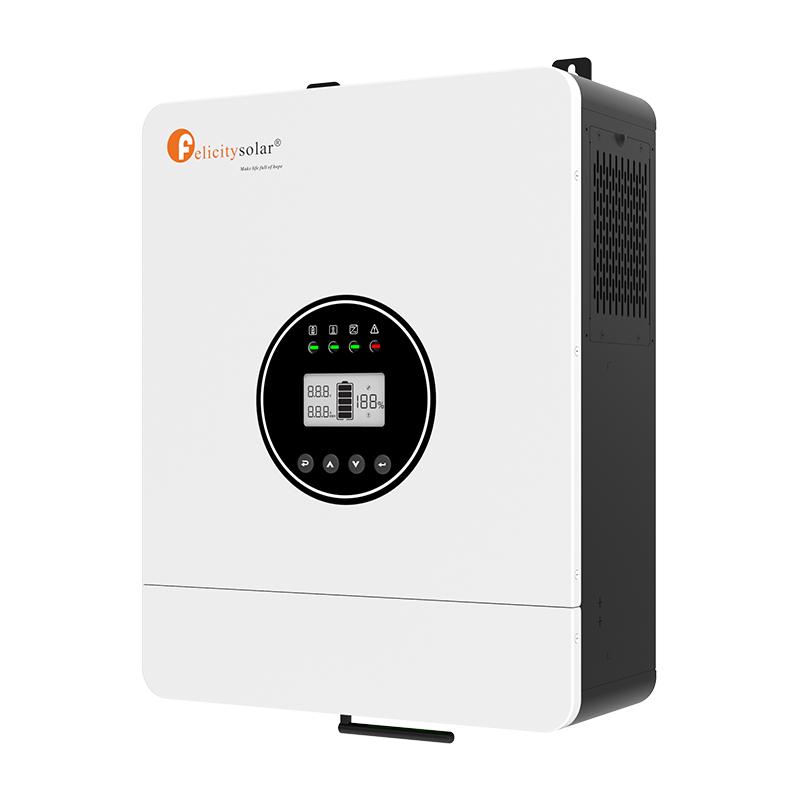

- Model: IVEM6048
- Rated Output Power: 6000VA / 6000W
- Nominal DC Input Voltage: 48V
- Input Voltage Waveform: Sinusoidal (utility or generator)
- Nominal Input Voltage: 230Vac
- Input Voltage Range:
- Low Line Disconnect: 170Vac±7V (UPS mode); 90Vac±7V (Appliances mode)
- Low Line Reconnect: 180Vac±7V (UPS); 100Vac±7V (Appliances)
- High Line Disconnect: 280Vac±7V
- High Line Reconnect: 270Vac±7V
- Nominal Input Frequency: 50Hz / 60Hz (Auto detection)
- Frequency Range:
- Low Frequency Disconnect: 40±1Hz
- Low Frequency Reconnect: 42±1Hz
- High Frequency Disconnect: 65±1Hz
- High Frequency Reconnect: 63±1Hz
- Output Voltage Waveform: Matches input waveform
- Efficiency (Line Mode): >95% (with rated resistive load, battery fully charged)
- Transfer Time:
- Single Unit: 10ms typical (UPS mode); 20ms typical (Appliances mode)
- Parallel Operation: 50ms typical
- Bypass Capability: Supports pass-through without battery; maximum bypass overload current of 40A
- Maximum Inverter/Rectifier Current: 40A / 6000W
- Solar Charging Parameters:
- Maximum PV Open Circuit Voltage: 500V
- PV Voltage Working Range: 90V-450V
- Maximum Input Power: 7500W
- Maximum Solar Charging Current: 120A
- Combined Charging Current (PV + Grid): Up to 120A
- Minimum Startup Voltage: 95V
