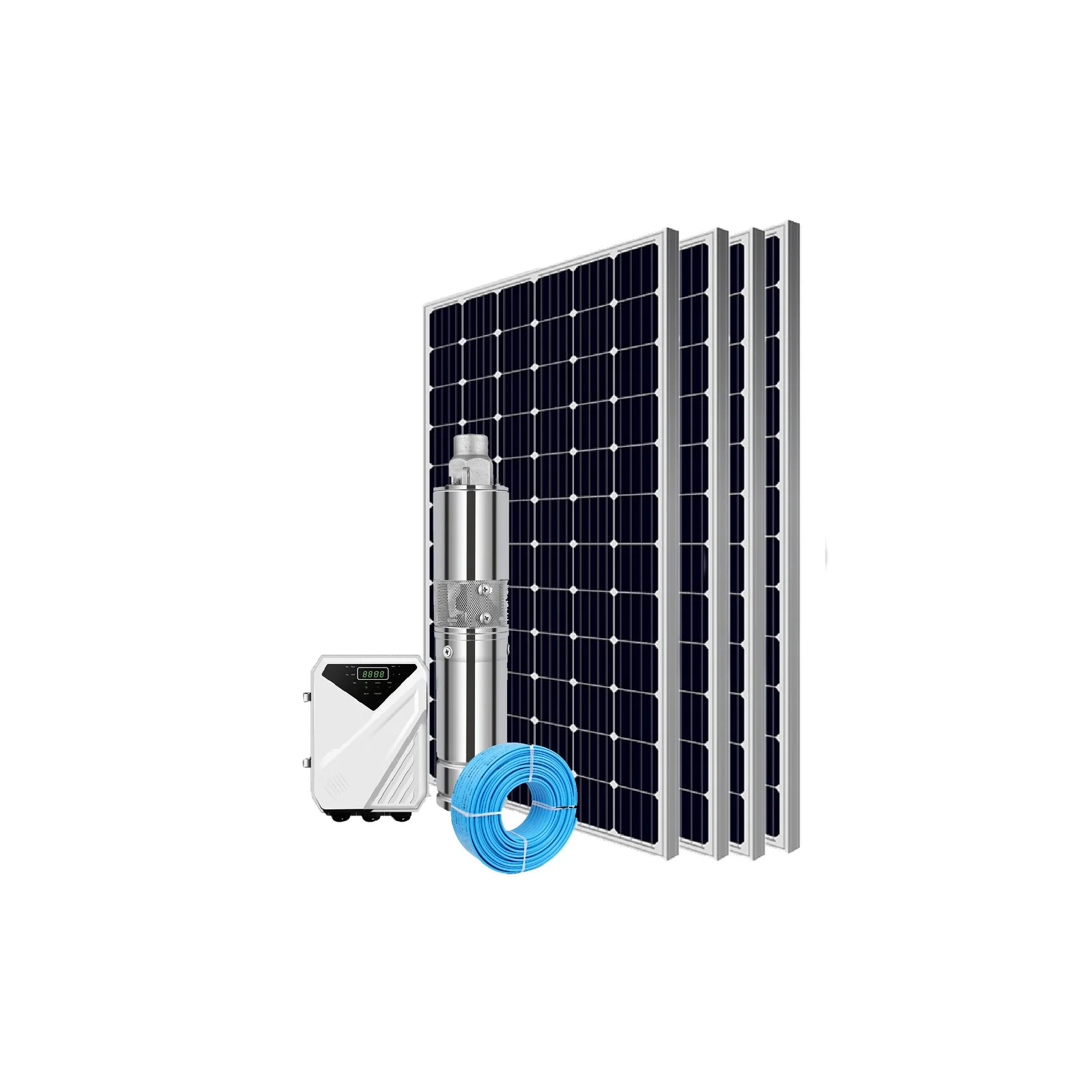

56m 6000L/Hr 4″ Solar Water Pump Kit with Panels 4DPC6-56-48-750 DC 48V 750W Submersible Borehole Deep Well pump with Mppt Controller Trunsun

General Specifications:

• Model Number: 4DPC6-56-48-750
• Pump Type: Deep Well Submersible
• Power Source: Solar
• Controller Type: MPPT
• Suitable Solar Panels: 4 pcs x 340W
• Submersible Cable: (Not included)

Performance:

• Flow Rate: 6000L/Hr
• Maximum Head: 56m
• Maximum Lift Height: 62m
• Suction Depth: Up to 8m

Motor:

• Type: Permanent magnet DC brushless synchronous
• Voltage: 48V
• Power: 750W
• Efficiency: ≥ 75%

Pump Construction:

• Material: Stainless Steel
• Outlet/Connector/Oil Cylinder: Brass
• Mechanical Seal: Alloy
• Protection: IP65

Controller Features:

• Waterproof Grade: IP65
• Soft Start Technology
• High/Low Voltage/Over-Current/High Temperature Protection

Solar Panel Specifications:

• Power: 340W
• Voltage: 48V
• Current: 7.08A
• Dimensions: 2005 x 1002 x 35 mm
• Weight: 24.5kg

Package Includes:

• 1 x 4″ DC Stainless Steel Solar Pump with 2m cable
• 1 x Pump Controller with MPPT function
• 1 x Stainless Steel Float Switch
• 1 x Pump Outlet Joint Connector
• 1 x Splice Kit for Cable Join
• 1 x Splice Kit for Waterproof
• 4 x 340W Solar Panels

Warranty:

• Pump: 2 Years
• Controller: 1 Year
• Solar Panels: 5 Years
