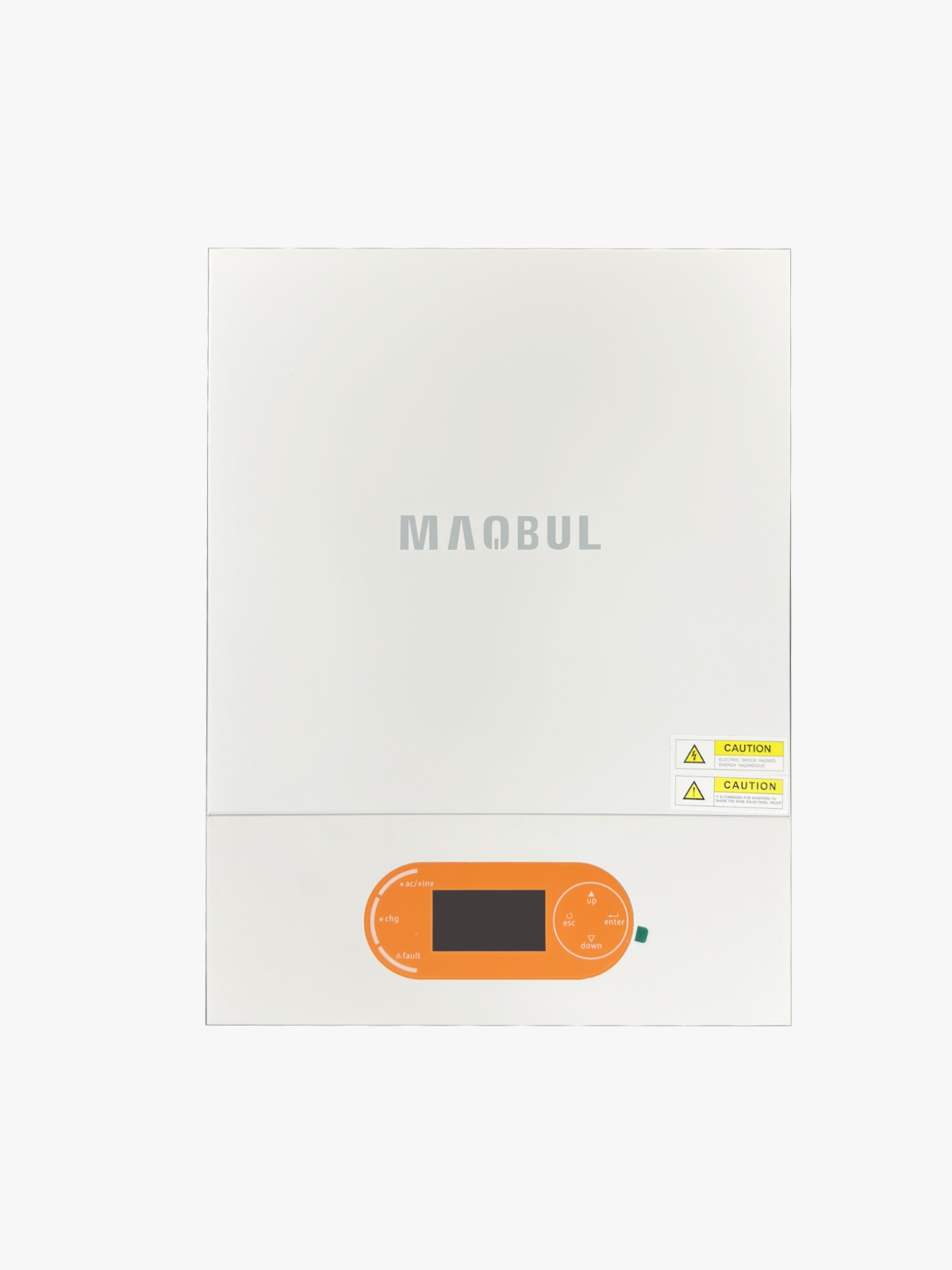

Technical Specifications
| Feature | Details |
|---|---|
| Rated Power | 5.5KW |
| Battery Voltage | 48V DC |
| PV Input Voltage Range | 120V – 500V |
| MPPT Charge Controller | 100A |
| Output Voltage | 230V AC ± 5% |
| Output Frequency | 50Hz/60Hz (Auto Sensing) |
| Waveform | Pure Sine Wave |
| Efficiency | Up to 93.5% |
| Communication Interfaces | USB, RS232, RS485, CAN (Optional) |
| Dimensions (W x D x H) | 400mm x 300mm x 130mm |
| Weight | Approx. 12 kg |
