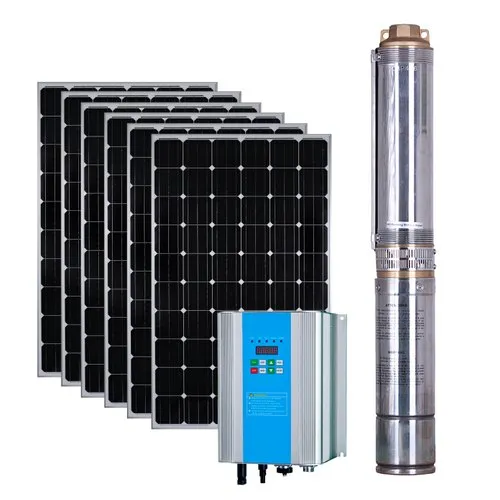

272m 4Kw Solar Borehole Pump Kit 8000L/Hr – Trunsun 5.5hp 4DSC8-272-380/550-4000-A/D AC DC 380/550V

General:

• Model Number: 4DSC8-272-380/550-4000-A/D
• Pump Type: Deep Well Submersible
• Power Source: AC/DC (380/550V)
• Power Consumption: 4000W
• Solar Panels: 16 x 340W High-Efficiency Panels (included)
• Submersible Cable: 277m (pre-measured)

Performance:

• Flow Rate: 8000L/Hr
• Maximum Head: 272m
• Maximum Lift Height: 280m
• Suction Depth: Up to 8m

Construction:

• Material: Stainless Steel
• Motor Type: Permanent magnet DC brushless synchronous
• Impeller Material: Stainless Steel
• Protection: IP65

Controller:

• MPPT Controller: Included
• Protection: Water shortage protection, soft start, over-current/voltage/temperature protection

Solar Panels:

• Power: 340W each
• Voltage: 48V
• Current: 7.08A each
• Dimensions: 2005 x 1002 x 35 mm each
• Weight: 24.5kg each

Cable:

• Length: 277m (pre-measured)
• Material: Submersible-grade cable (specific type may vary)
