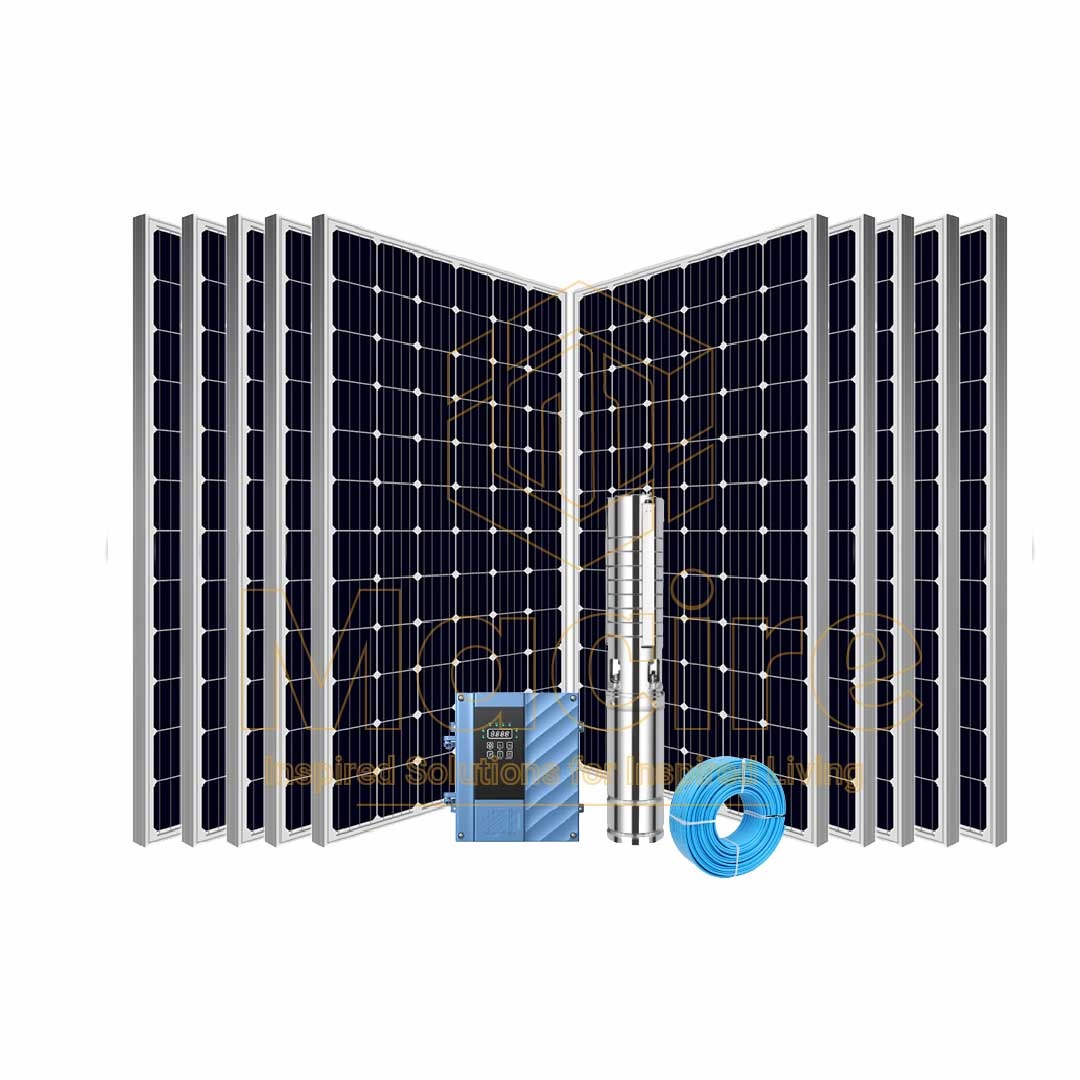

255m 5200L/Hr 4″ Solar Water Pump + Panels + Submersible Cable

General:

• Model Number: 4DSC5.2-255-300-2200-A/D
• Pump Type: Deep Well Submersible
• Power Source: AC/DC (300V)
• Power Consumption: 2200W
• Solar Panels: 10 x 340W High-Efficiency Panels (included)
• Outlet Size: 1.25″
• Submersible Cable: 260m (customizable)

Performance:

• Flow Rate: 5200L/Hr
• Maximum Head: 255m
• Maximum Lift Height: 263m
• Suction Depth: Up to 8m

Construction:

• Material: Stainless Steel
• Motor Type: Permanent magnet DC brushless synchronous
• Impeller Material: Stainless Steel
• Protection: IP65

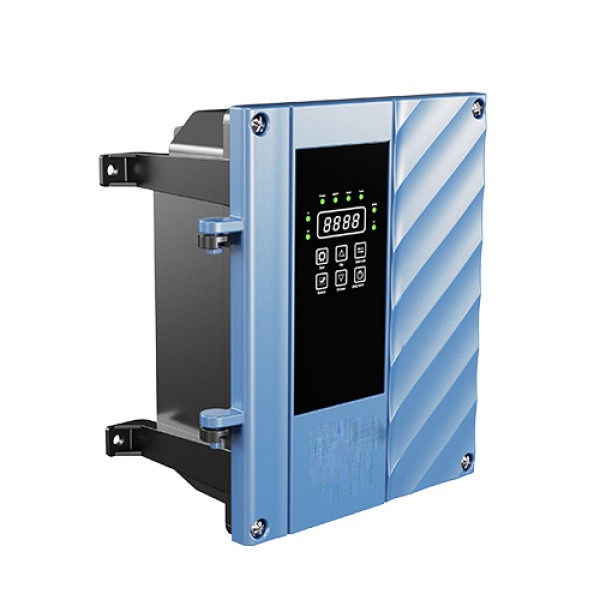

Controller:

• Type: AC/DC Pump Controller with MPPT function
• Waterproof Grade: IP65
• Features: Water shortage protection, soft start, over-current/voltage/temperature protection

Solar Panels:

• Power: 340W each
• Voltage: 48V
• Current: 7.08A each
• Dimensions: 2005 x 1002 x 35 mm each
• Weight: 24.5kg each
