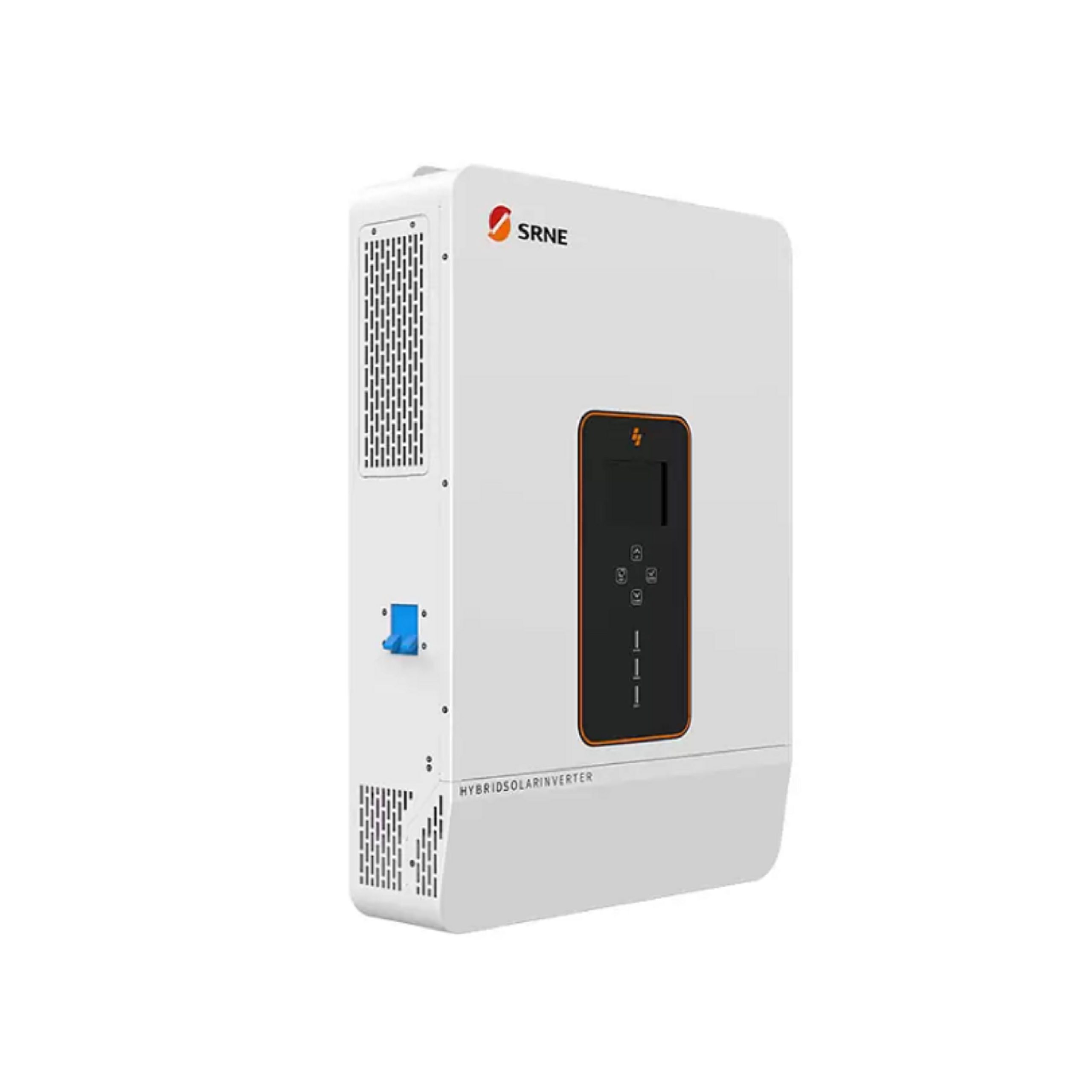

Key Features:
- High Power Output: Delivers a robust 12,000W rated output, with a maximum output power of 24,000VA, suitable for heavy-duty applications.
- Three-Phase Compatibility: Operates at 230/400V AC, ideal for three-phase systems, ensuring balanced and efficient power distribution.
- Dual MPPT Technology: Equipped with two independent Maximum Power Point Tracking (MPPT) ports, each supporting up to 9,000W input, maximizing solar energy harvest.
- Battery Integration: Compatible with 48V lithium-ion, lead-acid, or user-defined batteries, offering flexibility in energy storage solutions.
- Intelligent Charging: Supports a maximum hybrid charging current of 260A, ensuring rapid and efficient battery charging.
- Generator Support: Features a separate generator port, allowing seamless integration with auxiliary power sources for enhanced reliability.
- IP65 Rating: Designed with an IP65 protection degree, making it suitable for both indoor and outdoor installations, resistant to dust and water ingress.
- Advanced Protection Mechanisms: Includes comprehensive safeguards such as over-voltage, under-voltage, over-current, short-circuit, and over-temperature protections, ensuring system safety and longevity.
Technical Specifications:
- AC Output:
- Rated Output Power: 12,000W
- Max. Output Power: 24,000VA
- Rated Output Voltage: 230/400V AC (Three-Phase)
- Rated Frequency: 50/60Hz ±0.3
- Switch Time: 10ms (typical)
- Battery:
- Rated Battery Voltage: 48V
- Battery Voltage Range: 40–60V DC
- Max. Grid/Generator Charging Current: 120A
- Max. Hybrid Charging Current: 260A
- Solar Input:
- Number of MPPTs: 2
- Max. Input Power: 9,000W + 9,000W
- Max. Input Current: 22A + 22A
- Max. Open Circuit Voltage: 800V DC + 800V DC
- MPPT Voltage Range: 200–650V DC
- Efficiency:
- MPPT Tracking Efficiency: 99.9%
- Max. Efficiency: ≥92%
- European Efficiency: 97.5%
- General Data:
- Parallel Capacity: 1–6 Units
- Dimensions: 670 × 440 × 240mm
- Weight: 39kg
- Cooling Method: Heat sink + intelligent fan cooling
- Operating Temperature: -10 to 55°C, with derating above 45°C
- Communication Interfaces: RS485/CAN/USB/Dry Contact
- Optional External Modules: Wi-Fi/GPRS
- Topology: Transformerless
- Certifications: IEC62109-1, IEC62109-2, EN61000-6-1, EN61000-6-3, FCC 15 class B, RoHS
