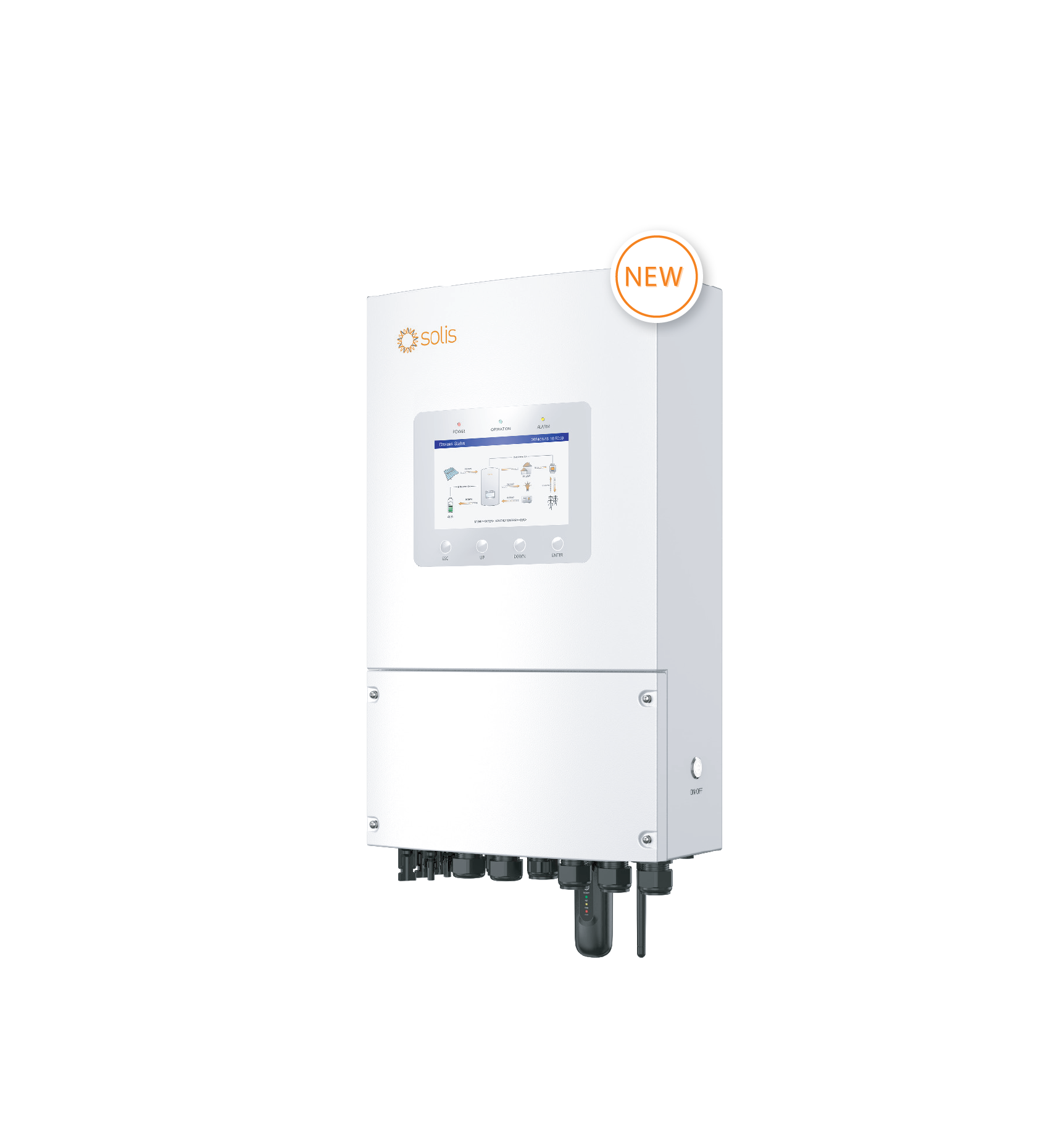

12 kW Solis S6‑EH 3‑Phase Low Voltage Hybrid Inverter
12 kW Solis S6‑EH 3‑Phase Low Voltage Hybrid Inverter - Image 2
12 kW Solis S6‑EH 3‑Phase Low Voltage Hybrid Inverter - Image 3

12 kW Solis S6‑EH 3‑Phase Low Voltage Hybrid Inverter

KSh284,995.00

+ Free Shipping

12 kW 3‑phase hybrid inverter designed for solar plus battery systems
Supports 120–800 V lithium battery with 50 A charge/discharge capacity
Dual MPPT design with 4 input strings (20 A each) for maximum solar capture
UPS backup switch in under 10 ms—ideal for power outages
Features Wi‑Fi, Ethernet, Bluetooth/App monitoring, CAN/RS485 interfaces
Robust IP66 housing and advanced safety protections

Category:
Guaranteed Safe Checkout

Technical Specifications

Specification Details
Rated AC Output Power 12 kW (3‑phase, 380/400 V, 50/60 Hz)
MPPT Trackers 2 × up to 20 A each; 4 strings maximum
Max PV Input Power ~19.2 kW (supports up to 24 kW panel array)
MPPT Voltage Range 200–850 V; DC Startup at 160 V
Battery Voltage Range 120–800 V Li-ion compatible
Max Battery Charge / Discharge 12 kW at 50 A
Surge Capability 200 % of rated power for 10 seconds
Efficiency Max / Euro 98.5 % / 97.7 %
Weight & Dimensions ~31 kg; 563 × 546 × 250 mm
Cooling / Protection Intelligent fan cooling; IP66 rated
Communications CAN, RS485, Ethernet; optional Wi‑Fi / cellular
Safety Protections Anti‑islanding, O/C, short‑circuit, AFCI 2.0, reverse‑polarity, PV & battery overvoltage
