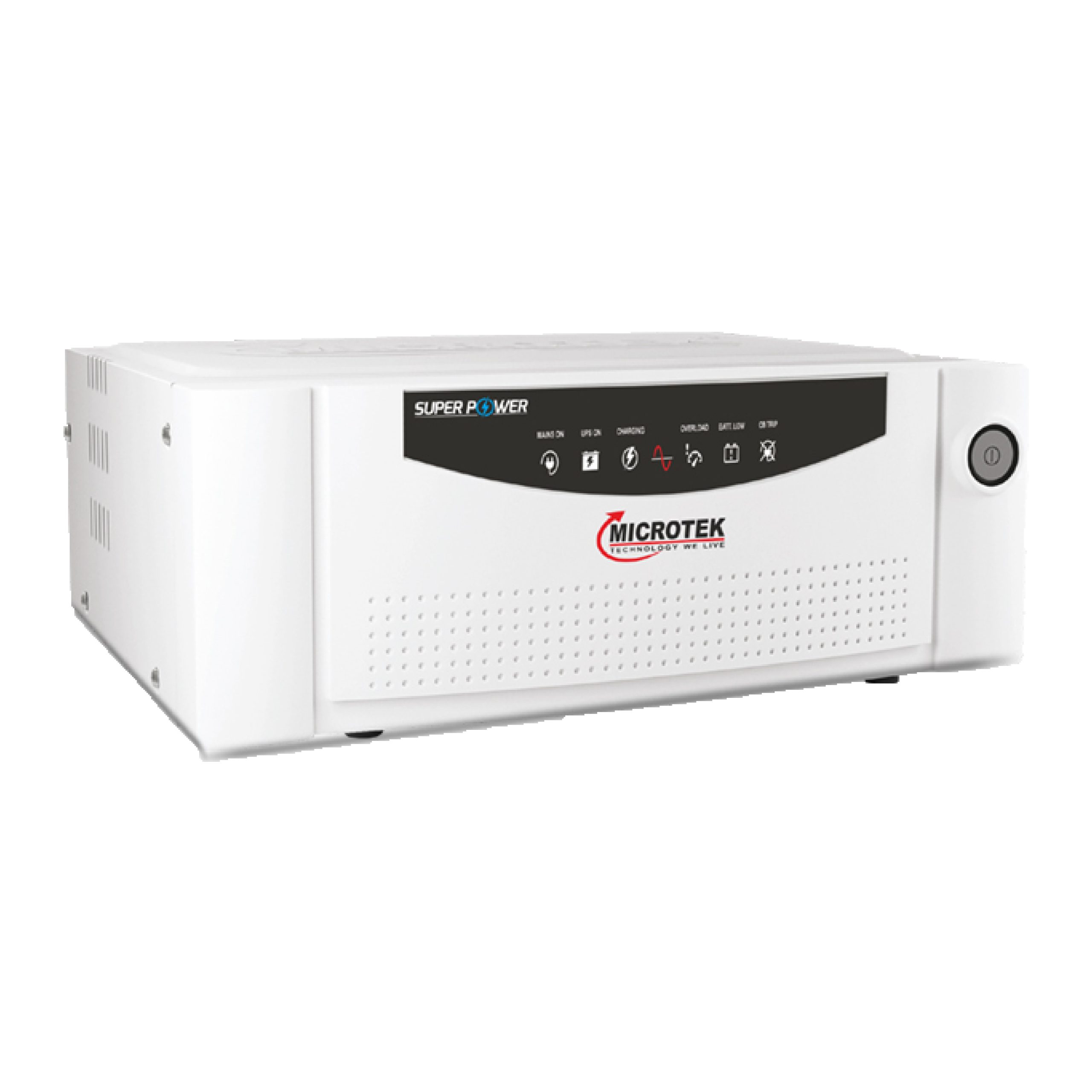

| MODEL | Super Power 700 (12V) DG |
| INPUT | |
| INPUT VOLTAGE (Standard range) | 100V ~ 300V |
| INPUT VOLTAGE (Narrow Range) | 180V ~ 260V |
| OUTPUT | |
| OUTPUT VOLTAGE (Main Mode) | Same as INPUT |
| OUTPUT VOLTAGE (UPS Mode) | 200V ~ 230V + 10% |
| OUTPUT WAVE FROM (Main Mode) | Same as INPUT |
| OUTPUT WAVE FROM (UPS Mode) | TPZi Wave From (Trap Zoidal Wavefrom) |
| CHANGE-OVER | |
| SWITCHOVER (Mains>UPS / UPS>Mains) | AUTOMATIC |
| UPS TRANSFER TIME | <15 msec |
| TECHNOLOGY | |
| DESIGN | Micro Controller Based Design With IPS Technology |
| BATTERY CHARGING CURRENT | Constant Charging Approx. 10% of the Rated Battery Current in AH |
| UPS OVERLOAD / UPS SHORT CIRCUIT | 110% / 300% |
| BROWNS ON MAINS VOLTAGE | 100V + 40V |
| EFFICIENCY (BATTERY MODE) | >84% |
| AUTO RESET FEATURE | YES |
| INPUT DC RANGE | 10.5V ~ 14.2V |
| CHARGING CURRENT | 10 Amps + 1 Amps |
